3D animation video showcasing the recycling process of a E waste circuit board recycling equipment

The E waste PCB recycling equipment is developed according to the characteristics of its waste circuit board, the use of physical methods, multiple crushing, multiple screening, its utilization rate is more than 99%, with high added value, total friendly to the environment.

The detailed working process of the PCB recycling machine is as follows:

Dismantling:

If there are electronic components with your waste circuit boards, a PCB dismantling machine can be used to remove them first.

Shredding:

Due to the characteristics of large size and certain hardness, waste circuit boards cannot be processed directly. A double-shaft shredder is used to shred waste circuit boards into small pieces for easier disposal.

Crushing:

The 3D animation video of the E waste circuit board recycling equipment demonstrates two steps of crushing. The first crusher is hammer head crusher, which crushes the small pieces into smaller ones. The second crusher is hammer crusher, which further breaks down the smaller pieces into small particles. If you don't want iron in the separated metal, you can add a magnetic separator between the two crushers to remove any iron from the particles.

Crushers

Sieving:

After the crushing process, an eddy-vibrating screen is employed to control the size of the particles. The eddy-vibrating screen consists of two layers with a screen inside. If the particles are larger than the screen, they are sent back to the hammer crushing stage for further processing until they can pass through the screen. Conversely, smaller particles pass through the screen and proceed to the next step.

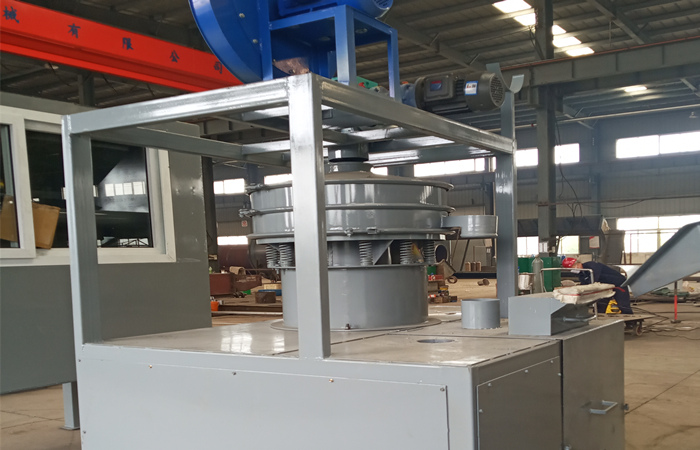

Eddy vibrating screen

Air separation:

The air separator use the different gravitational properties of metals and non-metals to separate them.

Electrostatic separation:

The final step of the PCB recycling machine is electrostatic separator. This electrostatic separator takes advantage of the different conductivity of metals and non-metals in a closed high-voltage magnetic field to separate them.

Electrostatic separator

The conventional processing capacity of our E waste circuit board recycling equipment is 200-2000KG/h. Different processing capacity configurations and prices are different. If you are interested, please feel free to contact us for more information. Our sales manager and engineering team will provide professional suggestions based on your requirements.
